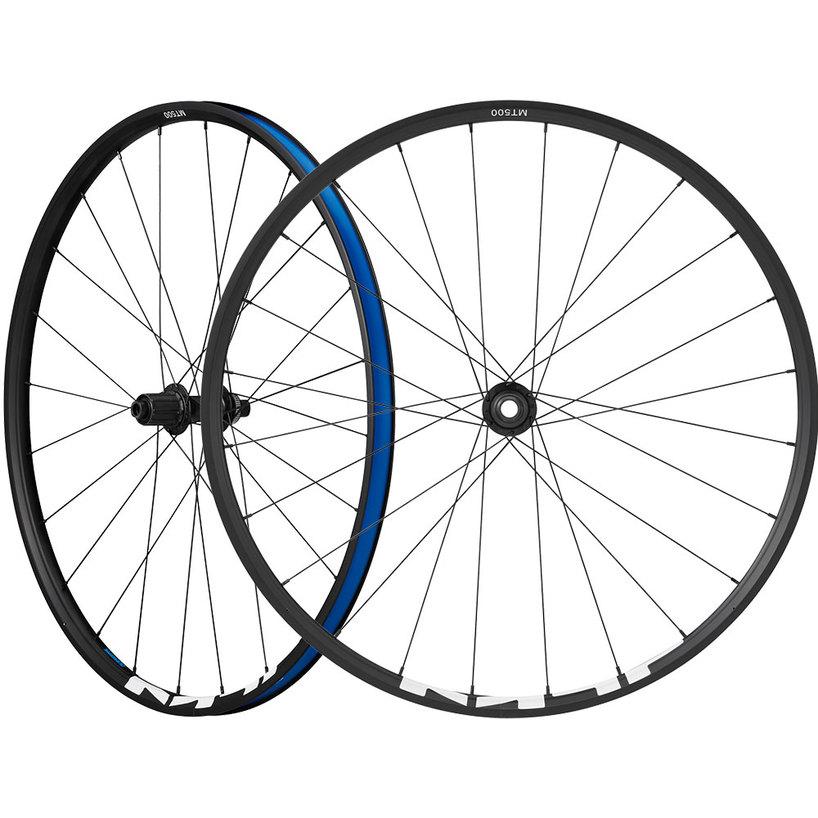

Shimano WH MT500 Disc Wheelset 27.5"

The Shimano WH-MT500 wheelset with aluminium rims, Centerlock disc, Shimano 8/9/10/11-speed freewheel body. Available in  thru axle front 15x100mm / Rear 12x142mm. or Quick Release Front 9x100mm / Rear 10x135mm.

SPECIFICATIONS
Application: Cross Country, Trail
Wheel Size: 27.5" (650B)
Tire Type: clincher
Number of Spokes: 24
Brake Type: Center Lock disc
Tubeless System: none
Freehub Body: Shimano MTB
Gearing: 8-/9-/10-/11-speed

Dimensions (ETRTO): 24-584
Inner Width: 24 mm
Outer Width: 29.6 mm
Depth: 21 mm
Valve Hole Diameter: Presta (6.5 mm)
Material: aluminium

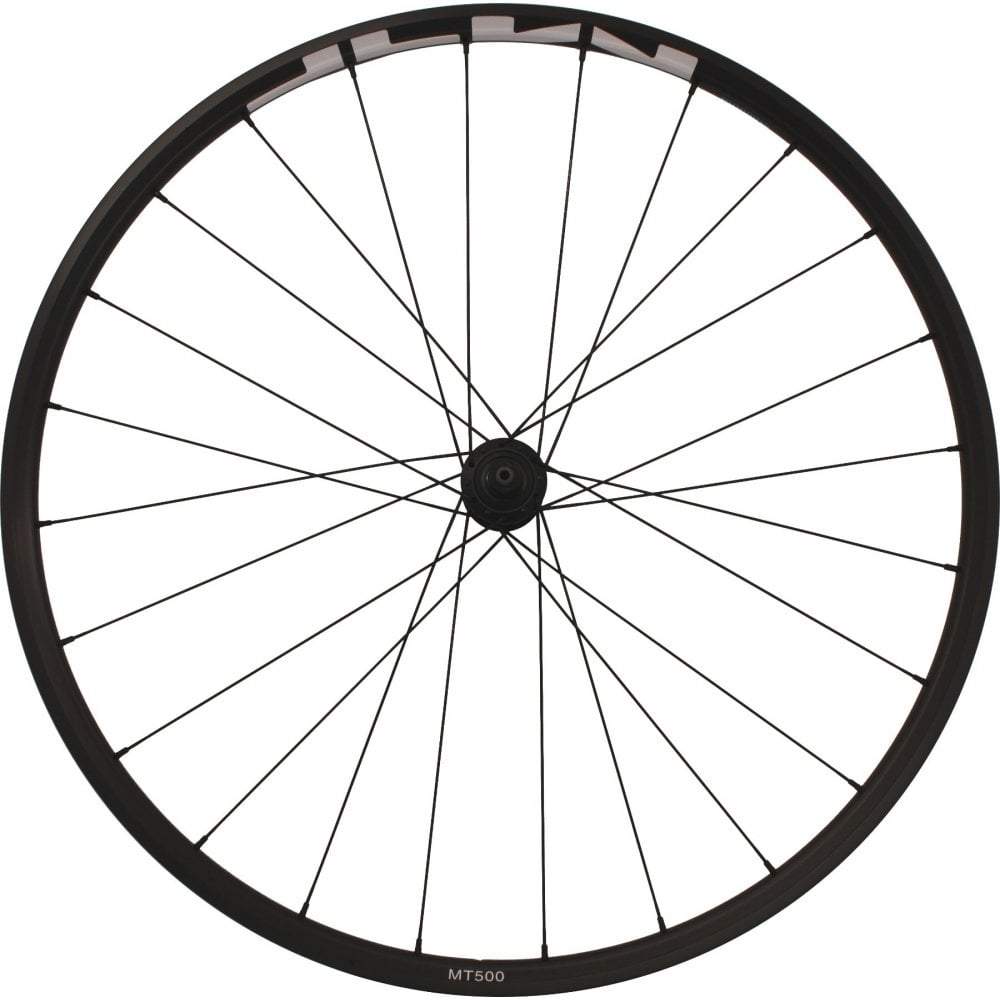

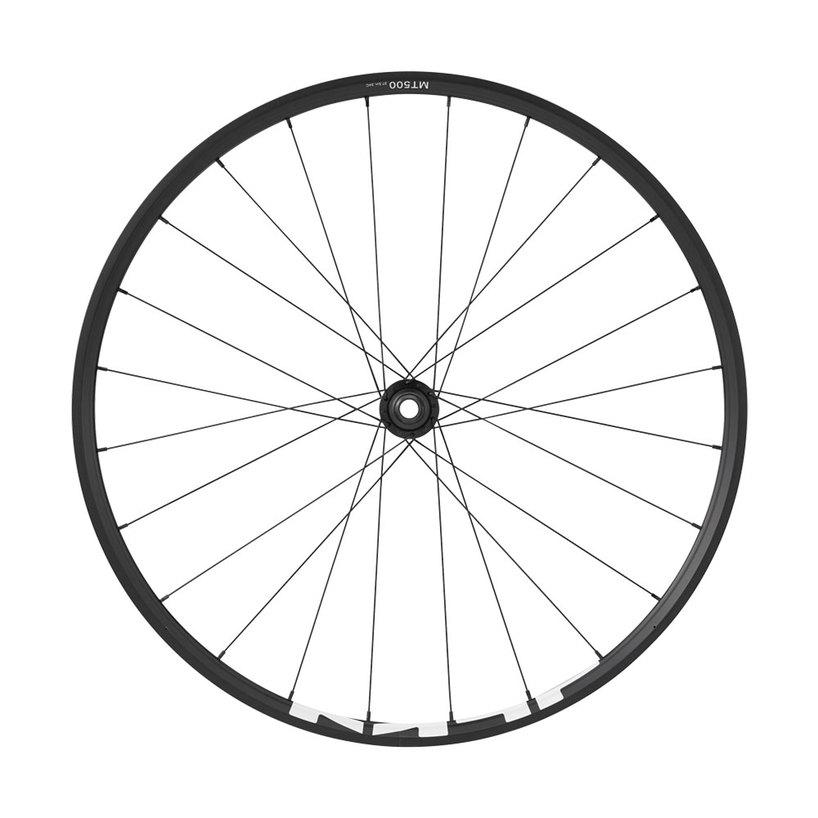

FRONT
Dimension: 15 x 100mm thru-axle, Or (QR 9x100mm Available)
Bearings: cup & cone
Body Material: aluminium

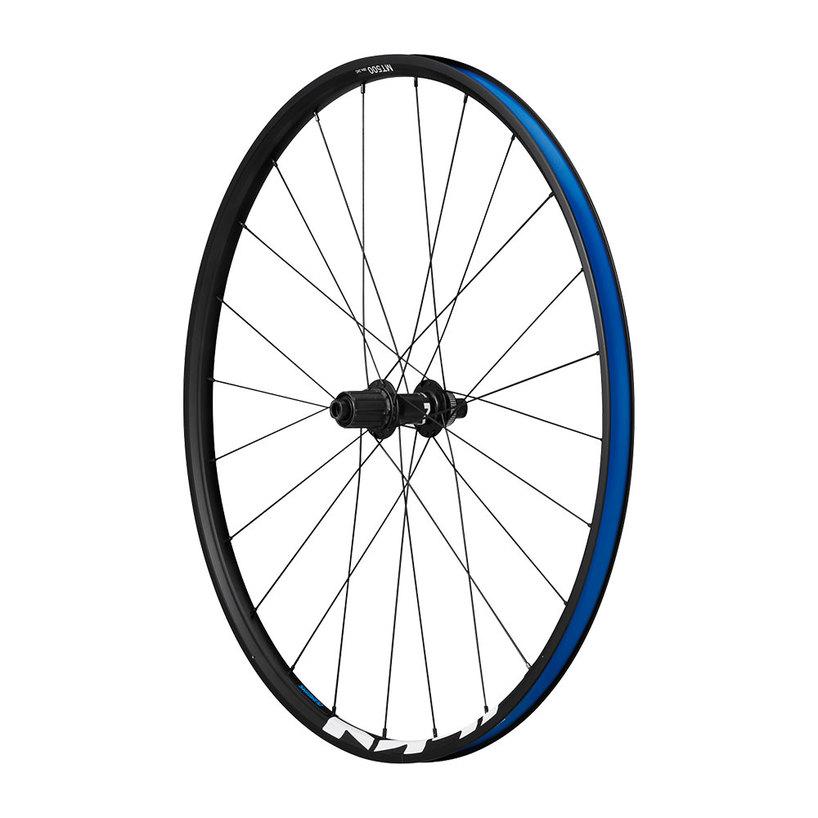

REAR
Dimension: 12 x 142mm thru-axle or (QR 10x135mm Available)
Bearings: cup & cone
Body Material: aluminium
Freehub Body Material: steel

Technical Information - Lacing:
Front Lacing Pattern: 2-cross
Rear Lacing Pattern: 2-cross
Spoke Type: J-bend / round (2.3)
Spoke Material: stainless steel
Nipple Material: brass

Features:
- anodized aluminium hub, sleeved
- hubs painted
- axles made of aluminium (front) or steel (rear)
- labyrinth and contact seals
- internal grease sleeve
- rim tape required (24-584)

Technology:
Cup and Cone Bearings
Angular contact bearings of the cup & cone type offer greater strength than sealed cartridge industrial bearings due to their ability to displace lateral and vertical loads more effectively for super smooth rotation and longer durability. Angular contact bearing also allow easier maintenance, adjustability and serviceability.

E-Thru
The tool-less type thru-axle skewer system optimizes rigidity and weight balance and enables easy operation with a reliable internal cam mechanism. High rigidity is secured while keeping the optimum weight balance. The E-thru axle hub system minimizes the distortion of suspension while staying lightweight for riding around sharp corners at high speed.

Shimano Item #
Front 9x100 QR • EWHMT500FD7
UPC : 689228236288

Rear 10x135 QR • EWHMT500RD7E
UPC : 689228236400

Front & Rear QR • EWHMT500FRD7E
UPC : 689228236813

Front 15x100mm • EWHMT500F15D7
UPC : 689228236806

Rear 12x142 • EWHMT500R12D7
UPC : 689228236486

Front & Rear Thru-Axle • EWHMT500FERED7
UPC : 689228236103


Original Genuine Shimano parts guarantees that all components work perfectly for optimum performance and maximum safety and Longevity.
