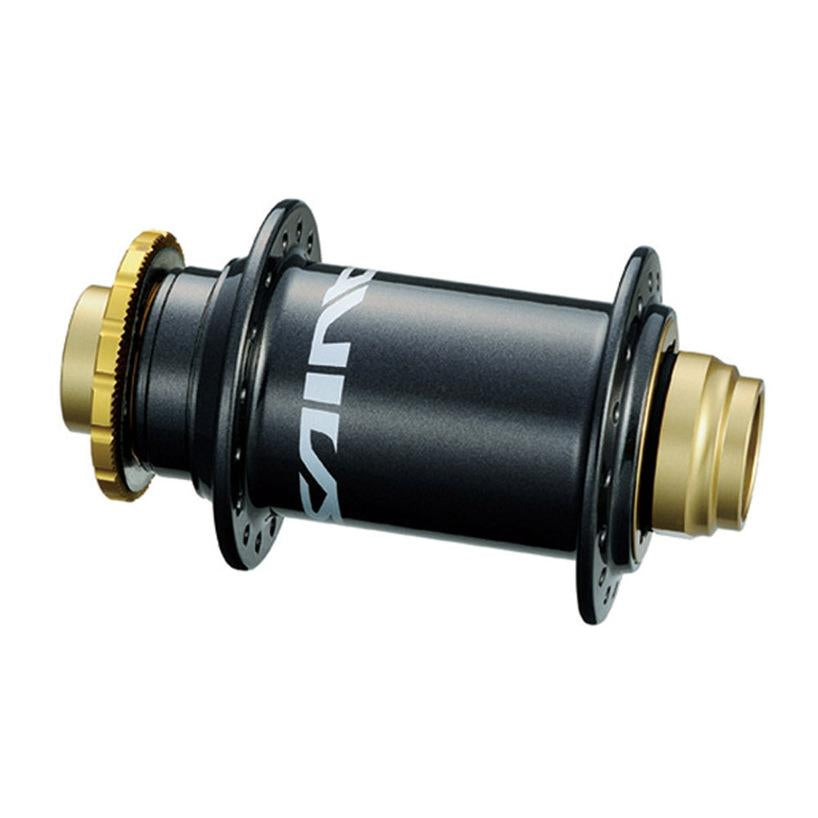

Shimano Saint HB M820 Disc Front Hub 20mm

Shimano Saint HB M820 Disc Center Lock Front Hub 20mmx110mm 32 Hole.
The third generation of the Saint, the M820 series, was designed according to the design philosophy of Pure Gravity with a clear focus on maximum downhill speed.

SPECIFICATIONS
Series: Saint M820
Application: Downhill
Size: 20 x 110mm Thru Axle
Hole: 32H
Brake/Compatibility: centerlock disc (Lock Ring included) 6-bolt Disc with conversion adapter. Click here (Shimano part # SM RTAD05) Sold Separately.
Weight: 216g
Color: Black
Lock ring Included

FEATURES
110 mm axle length, 20 mm axle diameter
Flange diameter 59.6 mm
Offset 5.6 mm
Stainless steel ball bearings, CBN-finished
Axle made of aluminum
Anodized hub body - High
quality seal
Internal grease jacket

TECHNICAL INFORMATION
Material Hub Body: Aluminum
Bearing: Tapered Bearing
Seal: Labyrinth + Contact
Flange Distance (L / R): 61.6 mm (25.2 mm / 36.4 mm)
pitch circle diameter (L / R): 52 mm / 52 mm
Thru axle Not included

Shimano Item # • EHBM820E
UPC : 689228349384

Original Shimano parts guarantees that all components work perfectly for optimum performance and maximum safety and longevity.
