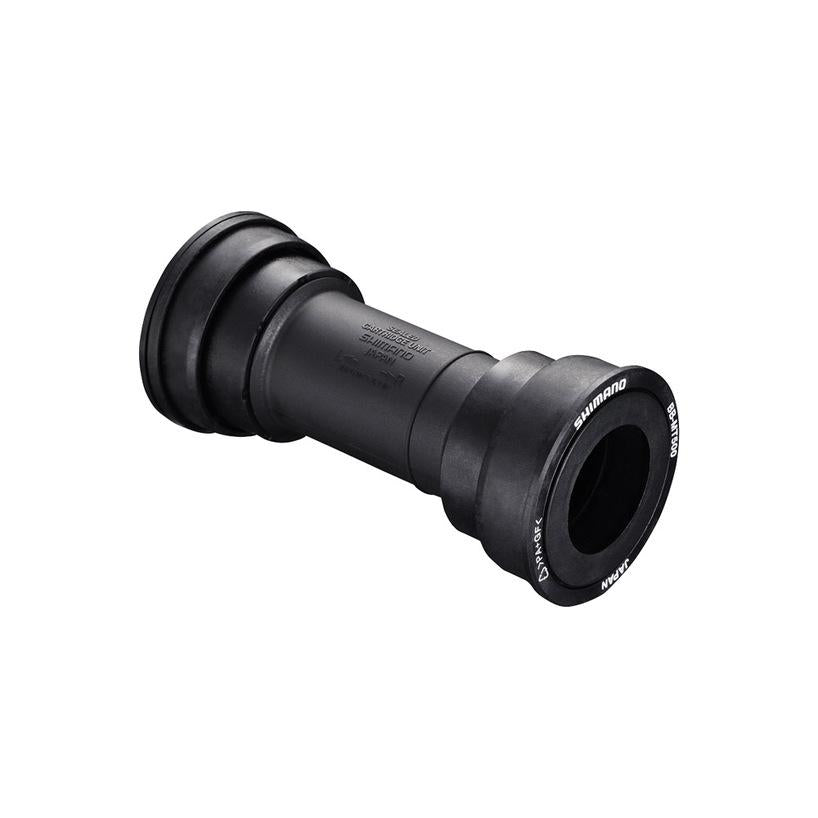

Shimano Deore BB-MT500 Press Fit Bottom Bracket

Shimano Deore BB-MT500-PA Hollowtech II Pressfit 41 x 89.5-92 mm Bottom Bracket. The outboard bearings offer better weight distribution and more stability that provides a more efficient power transfer.
The diameter of the bearing axle (24 mm) was an important factor in development because the axle has a positive effect on
stiffness, stability, weight, and rotating efficiency.

SPECIFICATIONS
CRANK INTERFACE Press-Fit
APPLICATIONS: Cross Country MTB
SHELL WIDTH 89.5/92mm
CUP DIAMETER 41mm
WEIGHT 68.2g
SERIES Deore M6000 Series
AXLE DIAMETER: 24 mm (HOLLOW TECH II)

Shimano Item # • UPC
BB-MT500-PA • 689228921382

Technical Information:
Bearings: steel
Bottom Bracket Cup Material: resin
Bottom Bracket Shell Material: resin

Contents:
- 1 x Shimano BB-MT500-PA right bearing cup, bearings included
- 1 x Shimano BB-MT500-PA left bearing cup, bearings included
- 1 x Shimano bottom bracket shell
- 1 x 2.5 mm spacer
