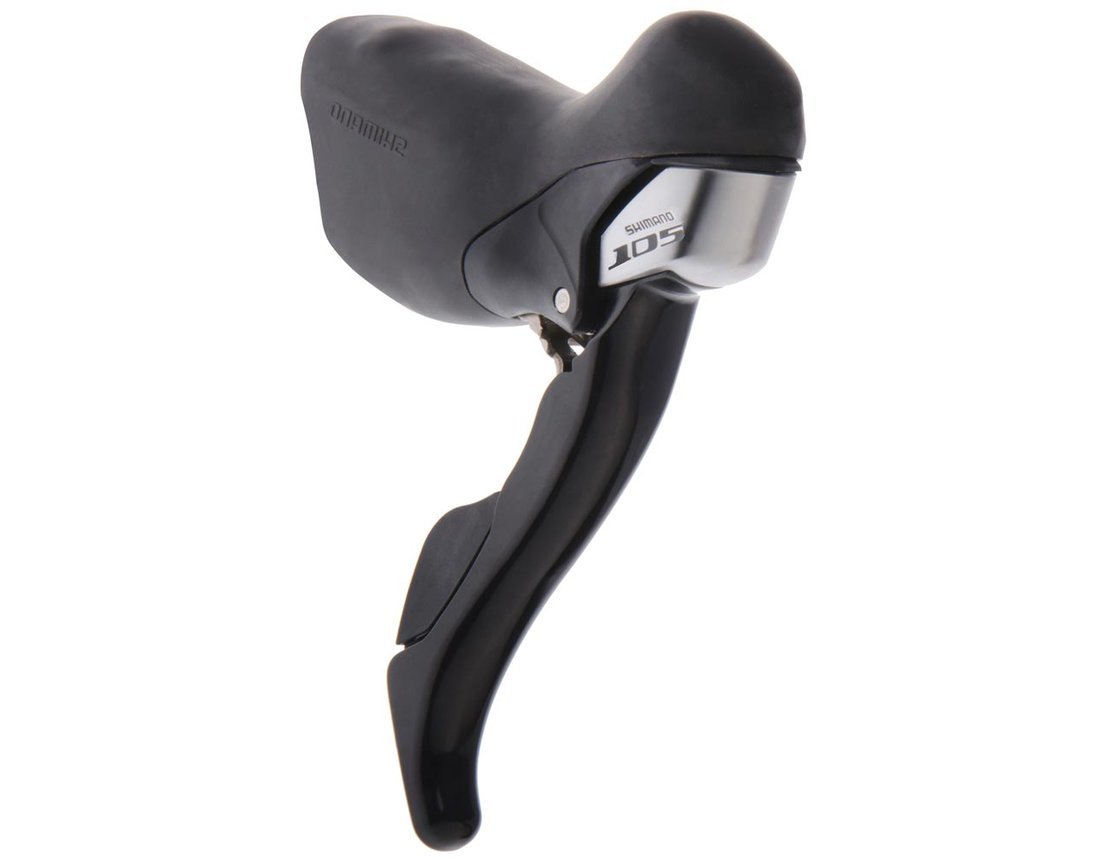

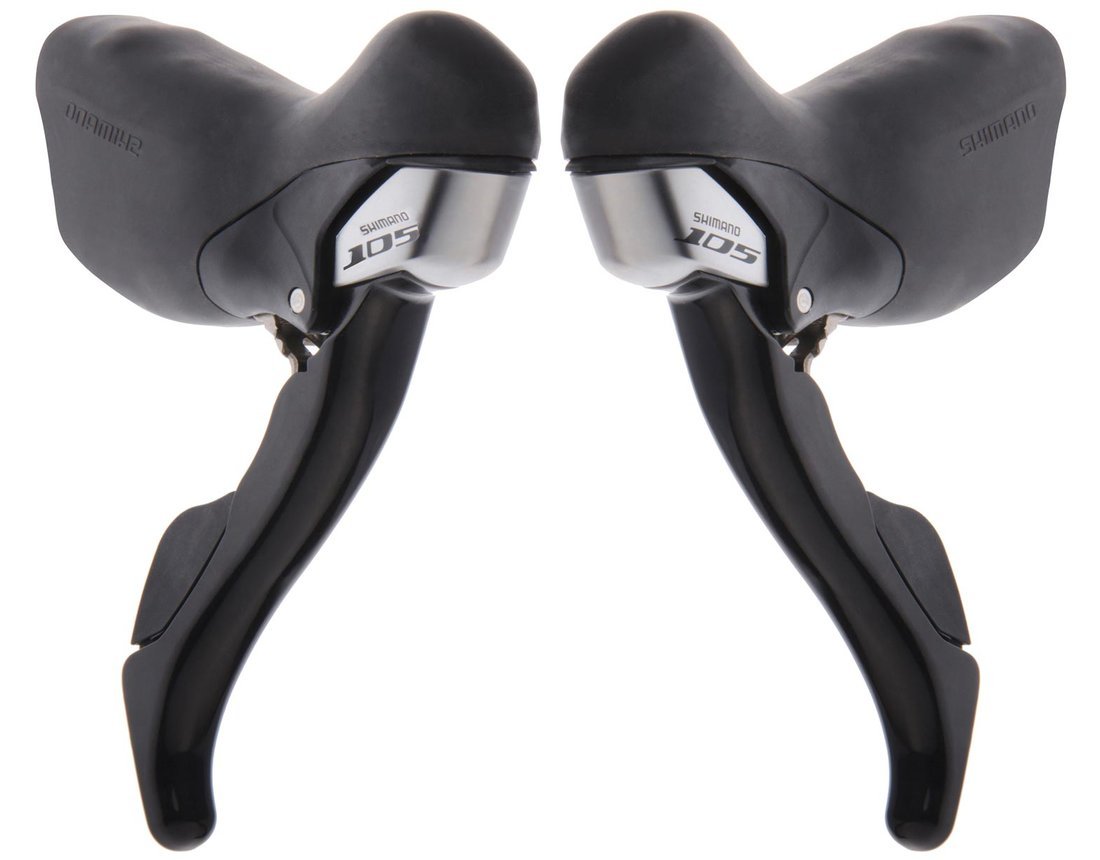

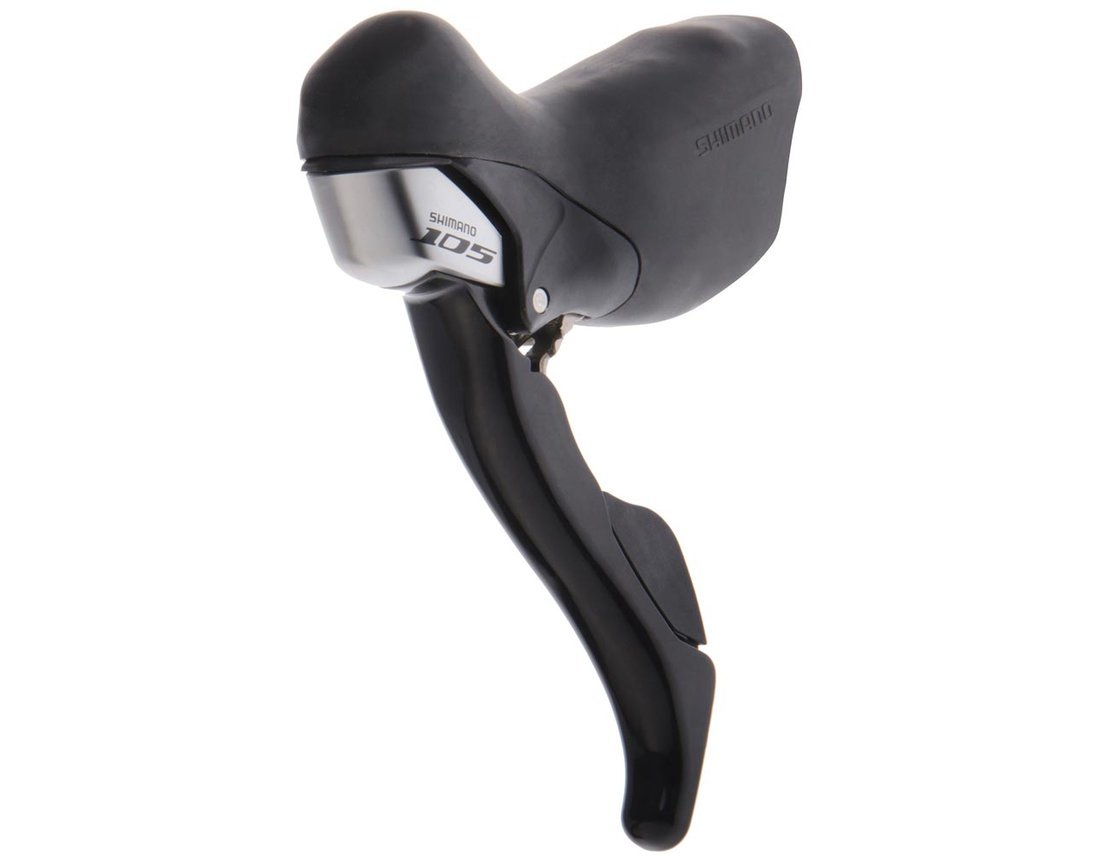

Shimano 105 ST 5700 10 Speed Shifter Levers STI Dual Control

Shimano 105 ST 5700 10 Speed Shifter Levers STI Dual Control. Available For 2x10 Double or 3x10 Triple Front Chainrings. Ergonomic bracket shape, clean cable routing, better operation. Lighter steering action and clean handlebar area. Smooth operation and powerful braking system: Shimano STI Dual Control 105 10-speed ST-5700 . Sold Individually or Front & Rear Set.

The SHIMANO 105 10-speed group features many of the technological improvements of the DURA-ACE and ULTEGRA components, at a very attractive price thanks to the use of more economical materials and solutions.SHIMANO 105 Dual Control Levers ST-5700 (for Double and Compact cranksets) and ST-5703 (for Triple cranksets) feature cable routing underneath the handlebar tape, just like the DURA-ACE and ULTEGRA. They have been developed with a reach adjustment mechanism that will accommodate smaller hands and a wide assortment of bar bends. The brake lever pivot is located closer to the rider for an improved controllability, especially when riding with the hands on top of the hoods.

SPECIFICATIONS
Use: Road
Group: 105
Model: ST-5700 10 Speed
Type: Dual-Control (STI)
Front Left: 2-speed Double (5700) / 3-Speed Triple (5703)
Rear Right: 10-speed (5700)
Optical gear display: No
Individual Shifters Includes Cables, No Housing. (F & R set Includes Cables/Housing Set)
Lever reach adjust: Spacer Use
Handlebar diameter: 23.8mm/24.2mm
Brake-type:SLR-EV, New Super SLR, Super SLR
Material
Body: CFRP
Lever: Aluminum
Color: Black
Weight: 490g / pair
Sold Individually or Front & Rear Set

FEATURES
Super SLR design
Internal cable routing
Brake lever pivot location
Adustable reach throgh shims

Technologies
DCL - Dual Control Lever
DCL stands for Dual Control Lever. It has brake and shifting functions in the system and enables easy operation. Ergonomic innovation is probably more critical to the higher standard performance than the added gearing. The shift internals borrow the robustness from our MTB technology and are so smooth and effortless that one finger shifts front and rear are possible. Indeed, shifting is the ultimate act of SHIMANO Total Integration, and simply has to be experienced to be understood.
New Structure DCL The DURA-ACE/ULTEGRA/105 Dual Control Lever have a new structure with features that include the lighter weight pivot section in the near side of the shifting unit and the integral shifting cable for lighter steering. Its many component parts are made so compact and precise to achieve unprecedented high-speed performance. The new DCL is literally the pivot component of the new dimension.

SLR-EV
SLR-EV is brand new SLR with dual symmetric pivot brake caliper. The short-arm brake design employs two bearings and a roller to realize greater efficiency in the pivot area and deliver superior modulation and power for braking. Together with the BC-9000 brake cable, the new calipers deliver 36% more braking power than SHIMANO’s previous brake model. And we offer 2 axle symmetric brake caliper and fork mount and chain stay mount type.

Shimano Item # • UPC
Front Left 2 Speed Black • IST5700LIL
UPC : 689228605282

Shimano Item # • UPC
Front Left 3 Speed Black Triple • IST5703LIL
UPC : 689228605367

Left Front Left 3 Speed Silver Triple • IST5703LIS
UPC : 689228605237

Rear Right 10 Speed Black • IST5700RIL
UPC : 689228605336

Front & Rear 2 x 10 Black • IST5700PALN
UPC : 689228606852

Front & Rear Set 3x10 Black • IST5703PALN
UPC : 689228606975
